ogdf::SpringEmbedderGridVariant::ForceModelBase Class Referenceabstract

#include <ogdf/energybased/spring_embedder/SEGV_ForceModel.h>

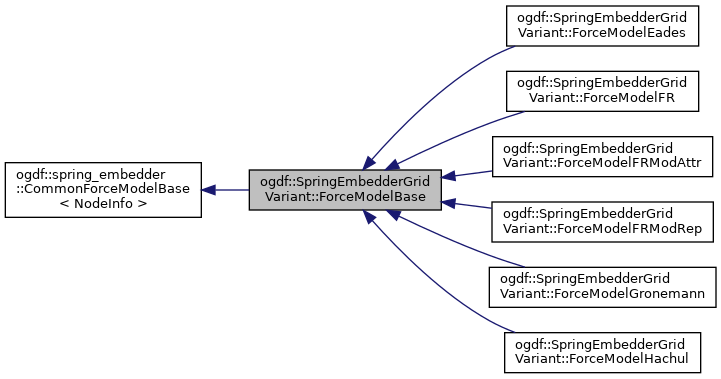

+ Inheritance diagram for ogdf::SpringEmbedderGridVariant::ForceModelBase:

Public Member Functions

 ForceModelBase (const Array< NodeInfo > &vInfo, const Array< int > &adjLists, const Array2D< ListPure< int >> &gridCell, double idealEdgeLength)

virtual ~ForceModelBase ()

virtual DPoint computeDisplacement (int j, double boxLength) const =0

- Public Member Functions inherited from ogdf::spring_embedder::CommonForceModelBase< NodeInfo >
 CommonForceModelBase (const Array< NodeInfo > &vInfo, const Array< int > &adjLists, double idealEdgeLength)

double eps () const


Protected Member Functions

DPoint computeMixedForcesDisplacement (int j, int boxLength, std::function< DPoint(double, const DPoint &)> attractiveChange, std::function< double()> attractiveFinal) const

DPoint computeRepulsiveForce (int j, double boxLength, int idealExponent, int normExponent=1) const

- Protected Member Functions inherited from ogdf::spring_embedder::CommonForceModelBase< NodeInfo >
DPoint computeFruchtermanReingoldAttractiveForce (int j, int idealExponent) const

double normByIdealEdgeLength (double norm) const


Protected Attributes

const Array2D< ListPure< int > > & m_gridCell

- Protected Attributes inherited from ogdf::spring_embedder::CommonForceModelBase< NodeInfo >
const Array< int > & m_adjLists

double m_idealEdgeLength

const Array< NodeInfo > & m_vInfo


Detailed Description

Definition at line 47 of file SEGV_ForceModel.h.

Constructor & Destructor Documentation

◆ ForceModelBase()

ogdf::SpringEmbedderGridVariant::ForceModelBase::ForceModelBase ( const Array< NodeInfo > &  vInfo,
const Array< int > &  adjLists,
const Array2D< ListPure< int >> &  gridCell,
double  idealEdgeLength
)
inline

Definition at line 50 of file SEGV_ForceModel.h.

◆ ~ForceModelBase()

virtual ogdf::SpringEmbedderGridVariant::ForceModelBase::~ForceModelBase ( )
inlinevirtual

Definition at line 55 of file SEGV_ForceModel.h.

Member Function Documentation

◆ computeDisplacement()

virtual DPoint ogdf::SpringEmbedderGridVariant::ForceModelBase::computeDisplacement ( int  j,
double  boxLength
) const
pure virtual

Implemented in ogdf::SpringEmbedderGridVariant::ForceModelGronemann, ogdf::SpringEmbedderGridVariant::ForceModelHachul, ogdf::SpringEmbedderGridVariant::ForceModelEades, ogdf::SpringEmbedderGridVariant::ForceModelFRModRep, ogdf::SpringEmbedderGridVariant::ForceModelFRModAttr, and ogdf::SpringEmbedderGridVariant::ForceModelFR.

◆ computeMixedForcesDisplacement()

DPoint ogdf::SpringEmbedderGridVariant::ForceModelBase::computeMixedForcesDisplacement ( int  j,
int  boxLength,
std::function< DPoint(double, const DPoint &)>  attractiveChange,
std::function< double()>  attractiveFinal
) const
protected

◆ computeRepulsiveForce()

DPoint ogdf::SpringEmbedderGridVariant::ForceModelBase::computeRepulsiveForce ( int  j,
double  boxLength,
int  idealExponent,
int  normExponent = 1
) const
protected

Member Data Documentation

◆ m_gridCell

const Array2D<ListPure<int> >& ogdf::SpringEmbedderGridVariant::ForceModelBase::m_gridCell
protected

Definition at line 60 of file SEGV_ForceModel.h.
