ogdf::HypergraphArrayBase Class Reference

Abstract base class for hypergraph arrays. More...

#include <ogdf/hypergraph/HypergraphArray.h>

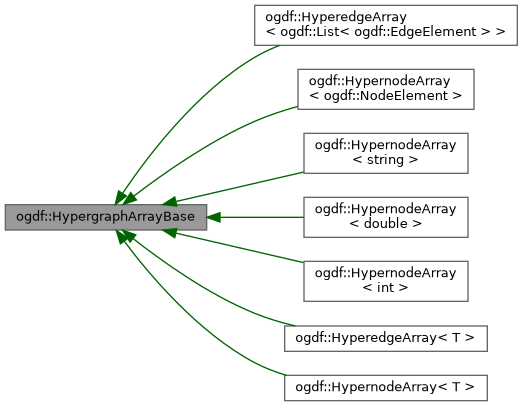

Inheritance diagram for ogdf::HypergraphArrayBase:

Public Member Functions
	HypergraphArrayBase ()
	Initializes an array not associated with a hypergraph.
	HypergraphArrayBase (const Hypergraph *pH)
	Initializes an array associated with pH.
virtual	~HypergraphArrayBase ()
	Destructor, unregisters the array.
virtual void	disconnect ()=0
	Disconnetion from the hypergraph.
virtual void	enlargeTable (int newTableSize)=0
	Table size enlargement.
const Hypergraph *	hypergraphOf () const
	Returns a pointer to the associated hypergraph.
virtual void	reinit (int initTableSize)=0
	Table re-initialization.
virtual void	reregister (const Hypergraph *H)=0
	Associates the array with a new hypergraph.

Public Attributes
const Hypergraph *	m_hypergraph
	The associated hypergraph.
ListIterator< HypergraphArrayBase * >	m_it
	Pointer to list element in the list of all registered hypergraph arrays which references this array.

Detailed Description

Abstract base class for hypergraph arrays.

Definition at line 41 of file HypergraphArray.h.

Constructor & Destructor Documentation

HypergraphArrayBase() [1/2]

ogdf::HypergraphArrayBase::HypergraphArrayBase ( )

inline

Initializes an array not associated with a hypergraph.

Definition at line 53 of file HypergraphArray.h.

HypergraphArrayBase() [2/2]

ogdf::HypergraphArrayBase::HypergraphArrayBase ( const Hypergraph *  pH )

inlineexplicit

Initializes an array associated with pH.

Definition at line 56 of file HypergraphArray.h.

~HypergraphArrayBase()

virtual ogdf::HypergraphArrayBase::~HypergraphArrayBase ( )

inlinevirtual

Destructor, unregisters the array.

Definition at line 59 of file HypergraphArray.h.

Member Function Documentation

disconnect()

virtual void ogdf::HypergraphArrayBase::disconnect ( )

pure virtual

Disconnetion from the hypergraph.

Implemented in ogdf::HypernodeArray< double >, ogdf::HypernodeArray< int >, ogdf::HypernodeArray< ogdf::NodeElement >, ogdf::HypernodeArray< string >, ogdf::HypernodeArray< T >, ogdf::HyperedgeArray< ogdf::List< ogdf::EdgeElement > >, and ogdf::HyperedgeArray< T >.

enlargeTable()

virtual void ogdf::HypergraphArrayBase::enlargeTable ( int  newTableSize )

pure virtual

Table size enlargement.

Implemented in ogdf::HypernodeArray< double >, ogdf::HypernodeArray< int >, ogdf::HypernodeArray< ogdf::NodeElement >, ogdf::HypernodeArray< string >, ogdf::HypernodeArray< T >, ogdf::HyperedgeArray< ogdf::List< ogdf::EdgeElement > >, and ogdf::HyperedgeArray< T >.

hypergraphOf()

const Hypergraph * ogdf::HypergraphArrayBase::hypergraphOf ( ) const

inline

Returns a pointer to the associated hypergraph.

Definition at line 62 of file HypergraphArray.h.

reinit()

virtual void ogdf::HypergraphArrayBase::reinit ( int  initTableSize )

pure virtual

Table re-initialization.

Implemented in ogdf::HypernodeArray< double >, ogdf::HypernodeArray< int >, ogdf::HypernodeArray< ogdf::NodeElement >, ogdf::HypernodeArray< string >, ogdf::HypernodeArray< T >, ogdf::HyperedgeArray< ogdf::List< ogdf::EdgeElement > >, and ogdf::HyperedgeArray< T >.

reregister()

virtual void ogdf::HypergraphArrayBase::reregister ( const Hypergraph *  H )

pure virtual

Associates the array with a new hypergraph.

Implemented in ogdf::HypernodeArray< double >, ogdf::HypernodeArray< int >, ogdf::HypernodeArray< ogdf::NodeElement >, ogdf::HypernodeArray< string >, ogdf::HypernodeArray< T >, ogdf::HyperedgeArray< ogdf::List< ogdf::EdgeElement > >, and ogdf::HyperedgeArray< T >.

Member Data Documentation

m_hypergraph

const Hypergraph* ogdf::HypergraphArrayBase::m_hypergraph

The associated hypergraph.

Definition at line 50 of file HypergraphArray.h.

m_it

ListIterator<HypergraphArrayBase*> ogdf::HypergraphArrayBase::m_it

Pointer to list element in the list of all registered hypergraph arrays which references this array.

Definition at line 47 of file HypergraphArray.h.

---

The documentation for this class was generated from the following file:

• include/ogdf/hypergraph/HypergraphArray.h
